# Styling an Extension Lens provides a set of global styles and UI components that can be used by any extension to preserve the look and feel of the application. ## Layout For layout tasks, Lens uses the [flex.box](https://www.npmjs.com/package/flex.box) library which provides helpful class names to specify some of the [flexbox](https://developer.mozilla.org/en-US/docs/Web/CSS/CSS_Flexible_Box_Layout/Basic_Concepts_of_Flexbox) properties. For example, consider the following HTML and its associated CSS properties: ```html

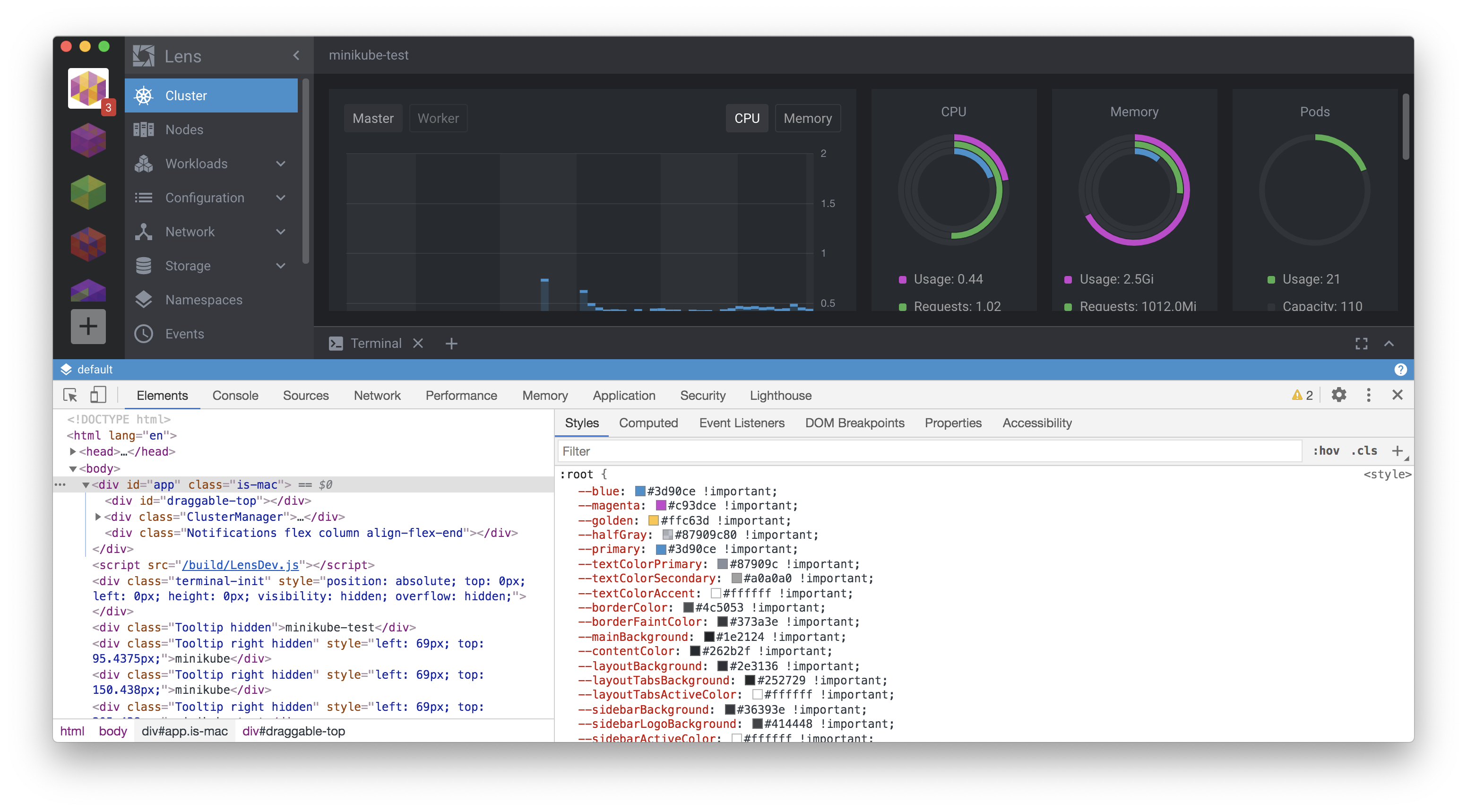

``` ```css div { display: flex; flex-direction: column; align-items: center; } ``` However, you are free to use any styling technique or framework you like, including [Emotion](https://github.com/emotion-js/emotion) or even plain CSS. ### Layout Variables There is a set of CSS variables available for for basic layout needs. They are located inside `:root` and are defined in [app.scss](https://github.com/lensapp/lens/blob/master/src/renderer/components/app.scss): ```css --unit: 8px; --padding: var(--unit); --margin: var(--unit); --border-radius: 3px; ``` These variables are intended to set consistent margins and paddings across components. For example: ```css .status { padding-left: calc(var(--padding) * 2); border-radius: var(--border-radius); } ``` ## Themes Lens uses two built-in themes defined in [the themes directory](https://github.com/lensapp/lens/tree/master/src/renderer/themes) – one light and one dark. ### Theme Variables When Lens is loaded, it transforms the selected theme's `json` file into a list of [CSS Custom Properties (CSS Variables)](https://developer.mozilla.org/en-US/docs/Web/CSS/Using_CSS_custom_properties). This list then gets injected into the `:root` element so that any of the down-level components can use them. ![CSS vars listed in devtools](images/css-vars-in-devtools.png) When the user changes the theme, the above process is repeated, and new CSS variables appear, replacing the previous ones. If you want to preserve Lens's native look and feel, with respect to the lightness or darkness of your extension, you can use the provided variables and built-in Lens components such as `Button`, `Select`, `Table`, and so on. There is a set of CSS variables available for extensions to use for theming. They are all located inside `:root` and are defined in [app.scss](https://github.com/lensapp/lens/blob/master/src/renderer/components/app.scss): ```css --font-main: 'Roboto', 'Helvetica', 'Arial', sans-serif; --font-monospace: Lucida Console, Monaco, Consolas, monospace; --font-size-small: calc(1.5 * var(--unit)); --font-size: calc(1.75 * var(--unit)); --font-size-big: calc(2 * var(--unit)); --font-weight-thin: 300; --font-weight-normal: 400; --font-weight-bold: 500; ``` as well as in [the theme modules](https://github.com/lensapp/lens/tree/master/src/renderer/themes): ``` --blue: #3d90ce; --magenta: #c93dce; --golden: #ffc63d; --halfGray: #87909c80; --primary: #3d90ce; --textColorPrimary: #555555; --textColorSecondary: #51575d; --textColorAccent: #333333; --borderColor: #c9cfd3; --borderFaintColor: #dfdfdf; --mainBackground: #f1f1f1; --contentColor: #ffffff; --layoutBackground: #e8e8e8; --layoutTabsBackground: #f8f8f8; --layoutTabsActiveColor: #333333; --layoutTabsLineColor: #87909c80; ... ``` These variables can be used in the following form: `var(--magenta)`. For example: ```css .status { font-size: var(--font-size-small); background-color: var(--colorSuccess); } ``` ### Theme Switching When the light theme is active, the `` element gets a "theme-light" class, or: ``. If the class isn't there, the theme defaults to dark. The active theme can be changed in the **Preferences** page: ![Color Theme](images/theme-selector.png) There is a way of detect active theme and its changes in JS. [MobX observer function/decorator](https://github.com/mobxjs/mobx-react#observercomponent) can be used for this purpose. ```js import React from "react" import { observer } from "mobx-react" import { App, Component, Theme } from "@k8slens/extensions"; @observer export class SupportPage extends React.Component { render() { return (

Active theme is {Theme.getActiveTheme().name}

); } } ``` `Theme` entity from `@k8slens/extensions` provides active theme object and `@observer` decorator makes component reactive - so it will rerender each time any of the observables (active theme in our case) will be changed. Working example provided in [Styling with Emotion](https://github.com/lensapp/lens-extension-samples/tree/master/styling-emotion-sample) sample extension. ## Injected Styles Every extension is affected by the list of default global styles defined in [app.scss](https://github.com/lensapp/lens/blob/master/src/renderer/components/app.scss). These are basic browser resets and element styles, including: - setting the `box-sizing` property for every element - default text and background colors - default font sizes - basic heading (h1, h2, etc) formatting - custom scrollbar styling Extensions may overwrite these defaults if needed. They have low CSS specificity, so overriding them should be fairly easy. ## CSS-in-JS If an extension uses a system like `Emotion` to work with styles, it can use CSS variables as follows: ```javascript const Container = styled.div(() => ({ backgroundColor: 'var(--mainBackground)' })); ``` ## Examples You can explore samples for each styling technique that you can use for extensions: - [Styling with Sass](https://github.com/lensapp/lens-extension-samples/tree/master/styling-sass-sample) - [Styling with Emotion](https://github.com/lensapp/lens-extension-samples/tree/master/styling-emotion-sample) - [Styling with CSS Modules](https://github.com/lensapp/lens-extension-samples/tree/master/styling-css-modules-sample)
